Description
|
Item
|
Parameter
|
|---|---|
|

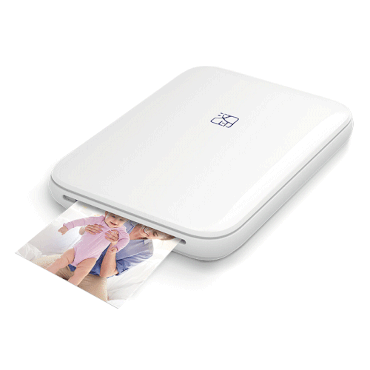

Product Name​
|
Pocket Printer
|
|
Model​
|
MT53
|
|
Structure​
|
Box-type Printer
|
|
Printing Mode​
|
ZINK Printing Mode
|
|
Max. Print Width​
|
< 50 mm
|
|
Resolution​
|
STD 313 dpi
|
|
Print Speed​
|
≥ 1.75 mm/s (Full print within 45 seconds)
|
|
Processor​
|
CX92121-51Z / BGA295
|
|
Flash Memory​
|
W25Q64JVSSIQ / SOIC-8 (8MB NOR FLASH)
|
|
Memory​
|
EM68B16CWQH / FBGA84 (64MB DDR2)
|
|
Media Type​
|
Type: Single-stack Zink die-cut paper
Thickness: Based on Zink standard Width: Based on Zink standard Length: Zink standard: 2″ x 3″ photo paper (with adhesive backing) |
|
Indicator Lights​
|
Status light and Error light
|
|
USB Interface​
|
USB 2.0
|
|
Bluetooth​
|
BT 4.2 or above, supports dual mode including BLE
|
|
Driver​
|
N/A
|
|
Software​
|
Android 5.0 and above, iOS 10.0 and above
|
|
Battery​
|
Polymer lithium-ion battery, rechargeable, 7.4V 550mAh
|
|
Input​
|
DC 5V/2A
|
|
Certification​
|
Phase 1 Certification: CCC, CE, SRRC, FCC
|
|
Environmental Conditions​
|
5-35℃ for normal printing function
5%~70% RH (non-condensing) for normal operation (printing still possible in environments below 5% RH) |
|
Warranty​
|
Printhead life: 1,000 sheets of Zink photo paper; Device: 12 months
|
|
User Guide​
|
User Manual (including after-sales service card)
|
|
Water & Dust Resistance​
|
IP4
|
|
Drop Height​
|
No bare device drop test; Packaged device: 1.2 meters
|
